Visual workflows

Workflows orchestrate a chain of actions (retrieval, generation, transcription, export, publishing, …) into a DAG, triggered manually, on a schedule, or via webhook. The design takes cues from Dify / Coze.

Canvas & nodes#

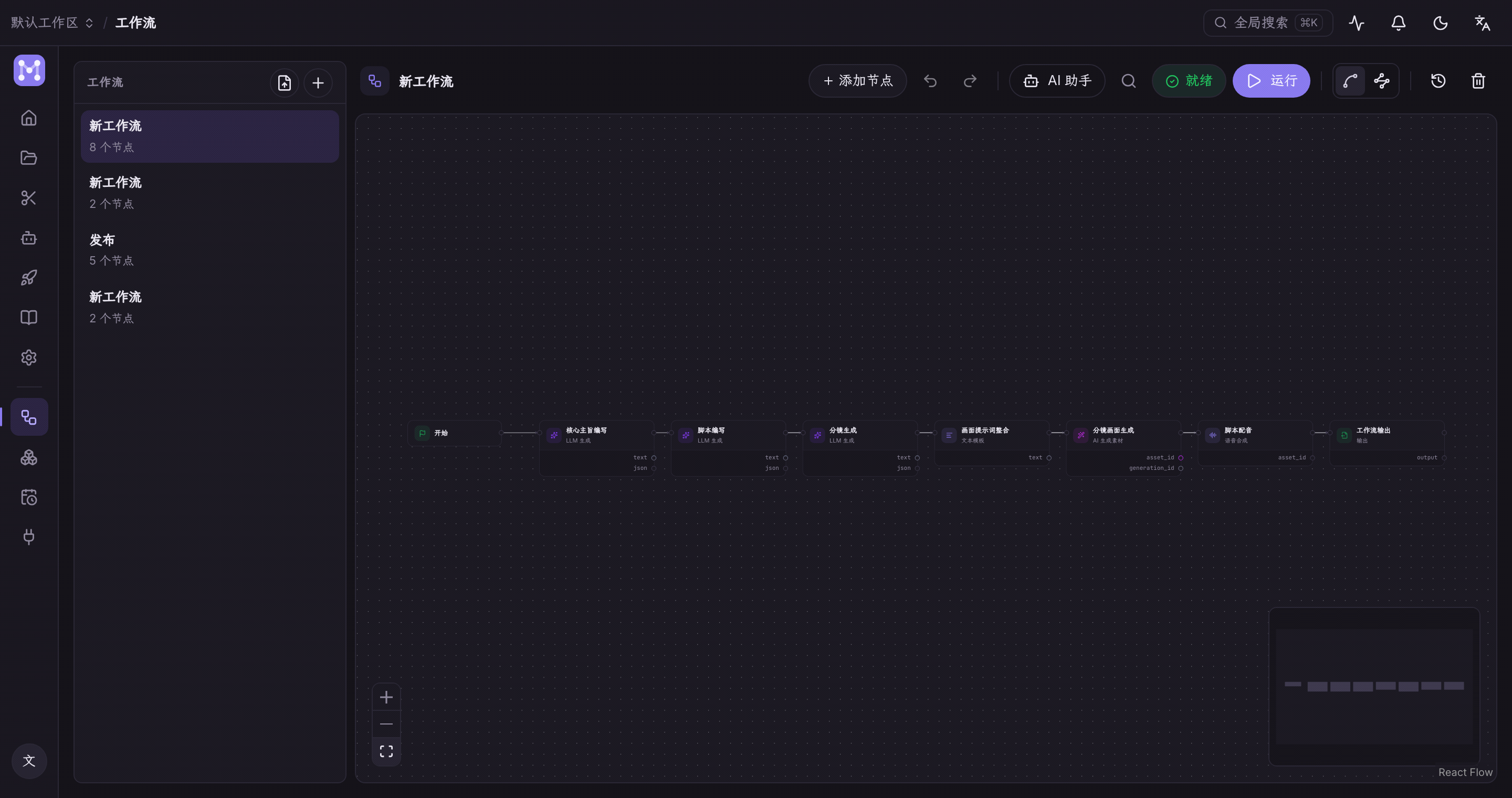

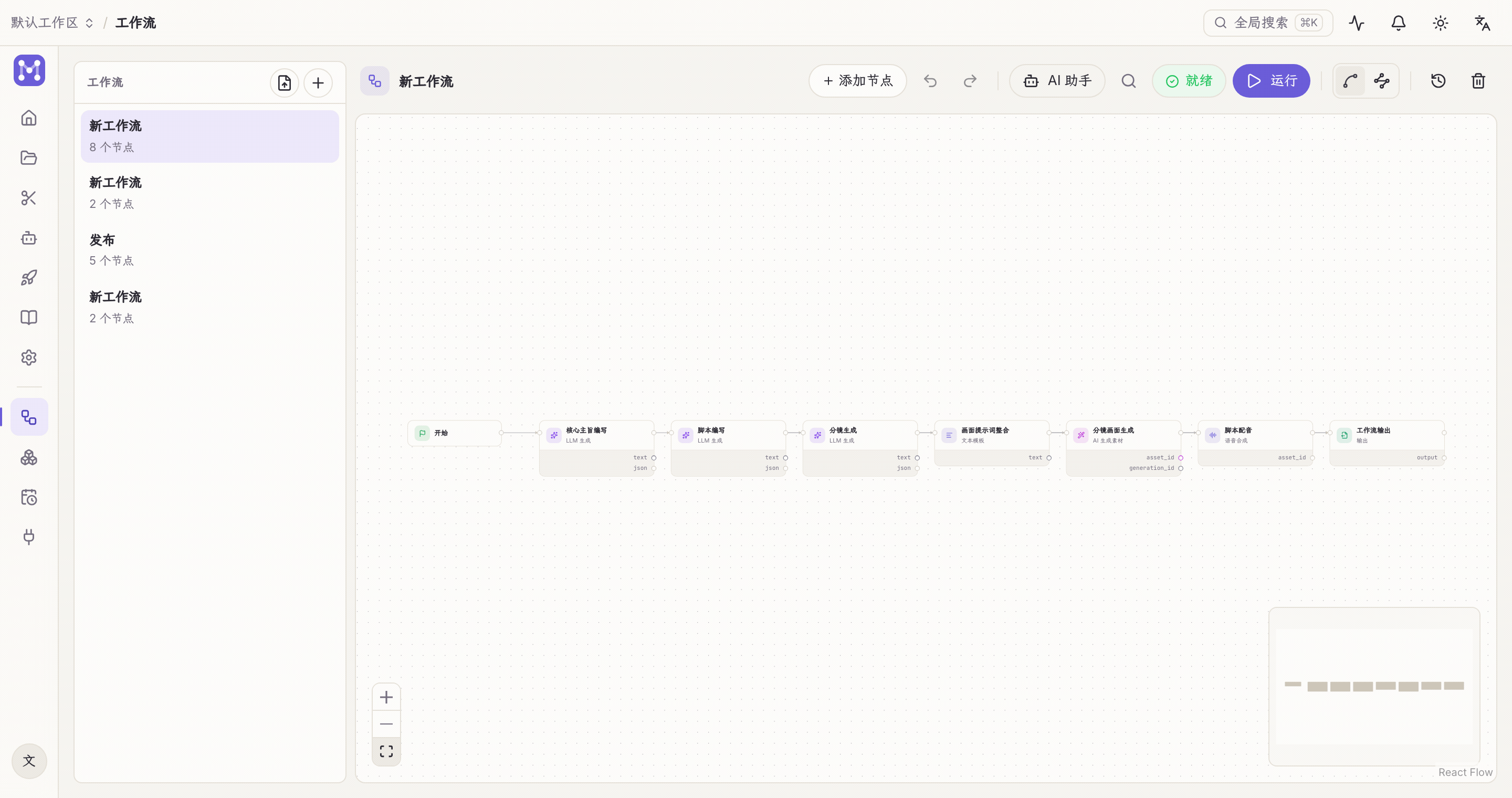

Build a workflow from scratch — use "Add node" to drop in KB Search and LLM Generate, drag between ports to connect them, and configure each node in place; the built-in AI assistant can also build the graph for you:

• The left column lists workflows; the rest is a React Flow canvas with a toolbar on top.

• Add node from the toolbar, grouped roughly by what they are for:

  Group	Nodes
  Flow	start, output, condition, delay, notify
  Text & models	LLM, text template, text transform, translate, JSON extract, code
  Loops & reuse	for-each, while, subgraph, call workflow
  Media & cuts	AI-generate asset, synthesize speech, transcribe asset, video to GIF, export timeline, publish
  Asset library	asset query, asset tag, asset update, create project
  External	HTTP request, plugin tool
  Browser	open / navigate / click / input / extract / scroll / upload / wait / evaluate / close

• Edges define execution order; drag from a node's right port to a downstream node's left port. The condition node has "true / false" outlets. The toolbar switches edge shape between curved (bezier) and stepped (right-angle); your choice is remembered.

• Click a node to open its inspector — it sits directly below the node, and a floating bar sits directly above it: content sections on the left (Parameters / Advanced / Outputs, plus This run once it has run — each shown only when the node has it), node actions on the right (open subgraph, delete). "Advanced" holds the knobs that work fine left blank, so the first screen isn't a wall of sampling parameters.

When something is buried#

With dense nodes or stacked floating panels, select one and press ⌘/Ctrl + ] to raise it or ⌘/Ctrl + [ to send it down. Floating panels use the same pair, but nodes can never cover a floating panel — otherwise the inspector would end up buried under the very node it's editing.

Variables: wiring upstream outputs into downstream inputs#

After a node runs it writes results into the context; output variables look like {{nodeId.output}} (e.g. {{llm-1.text}}).

Each field can switch between two input modes (the small pill at the right of the label row):

• Manual: type a value / pick an option; in template fields press @ to pull up upstream variables (keep typing to filter), or click a variable chip to insert at the cursor. When the node has nothing upstream yet, @ says so instead of doing nothing.
• Connected: the field becomes a port; pick one from the upstream outputs dropdown — equivalent to binding {{upstream.output}}. Switching back to manual keeps the previous value.

Readiness check / run gating#

The toolbar's readiness check aggregates all blockers: missing required fields, unconfigured models / providers, disconnected nodes, references to deleted nodes, and so on.

• Problem nodes get a warning badge on the canvas (red = blocking, amber = advisory) with a tooltip listing the issues.
• With errors present the Run button is disabled; each issue is clickable and jumps to the node.
• After deleting an upstream node, fields referencing it are marked stale and can be re-pointed or cleared.

The Video to GIF node takes a video asset id plus frame rate, width, start time and duration. It outputs a new GIF asset id and never overwrites the source video.

LLM generation style#

LLM nodes use a generation style (precise / balanced / creative) instead of a raw temperature, lowering the configuration bar.

Triggers#

Workflows can be bound to scheduled tasks: manual, cron, or webhook. Batch runs of the same workflow are supported.

Let AI build it#

The toolbar's AI assistant uses the shared persistent session pool: describe the flow you want in natural language and it builds / edits nodes for you; changes go through confirmation cards. Its top-left title is the active conversation — click it to search or switch sessions — and the panel can dock beside the canvas or float above it.
